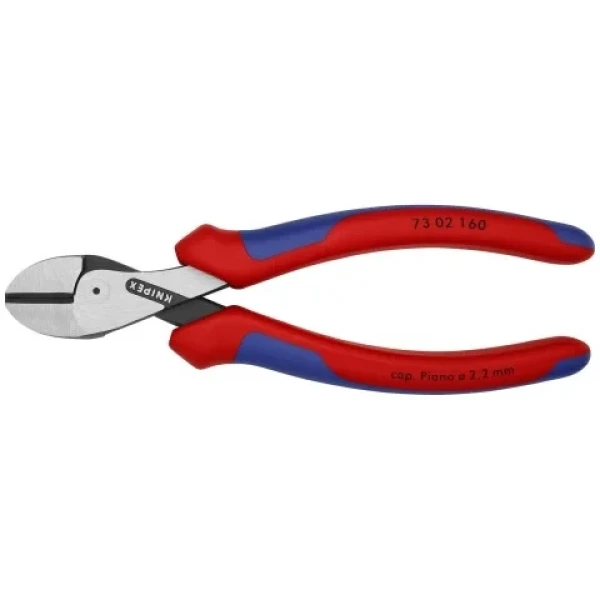

6 1/4" X-Cut® Compact Diagonal Cutters 73 02 160

Home

Products

$89.00 $79.00

40% less effort required compared to diagonal cutters of the same length Powerful, light weight and a universal cutter Cuts fine strands as well as multi-stranded cables and piano wires Box-joint design for highest stability and lightweight

Building Materials

SKU:73 02 160

Currently , Items are in stock!

Remove from Wishlist Add to Wishlist Add to Compare

No Guarantee

No Warranty

Non Returnable

Cash on Delivery Not available

Non Cancelable

Availability: In stock

AMRIK BAL

Check Product Deliverability

If your city is not on the list we cannot deliver the product there.

6 1/4" Diagonal Cutters-1000V Insulated-Tethered Attachment 70 06 160 T $100.57

7 1/4" Spring Hose Clamp Pliers 85 51 180 A $140.12

Description
Reviews

Description

40% less effort required compared to diagonal cutters of the same length
Powerful, light weight and a universal cutter

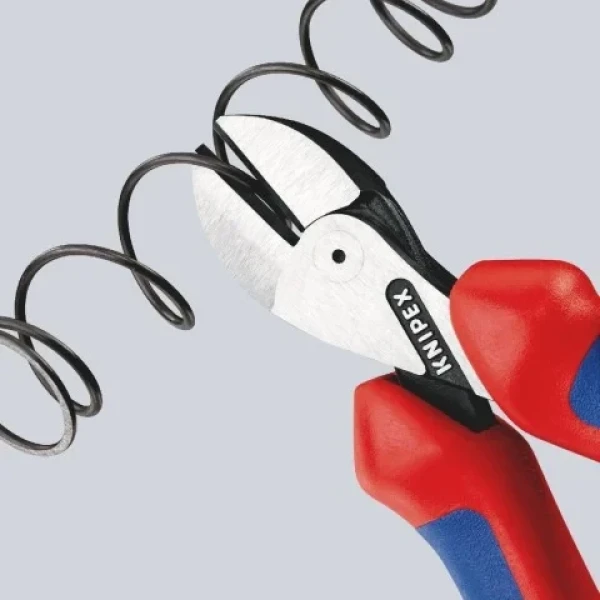

Cuts fine strands as well as multi-stranded cables and piano wires
Box-joint design for highest stability and lightweight
High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
Large opening width for thicker cables
Cuts all wires precisely, even fine copper wires
Compact, low weight construction
Double supported joint axis for heavy-duty work
Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened

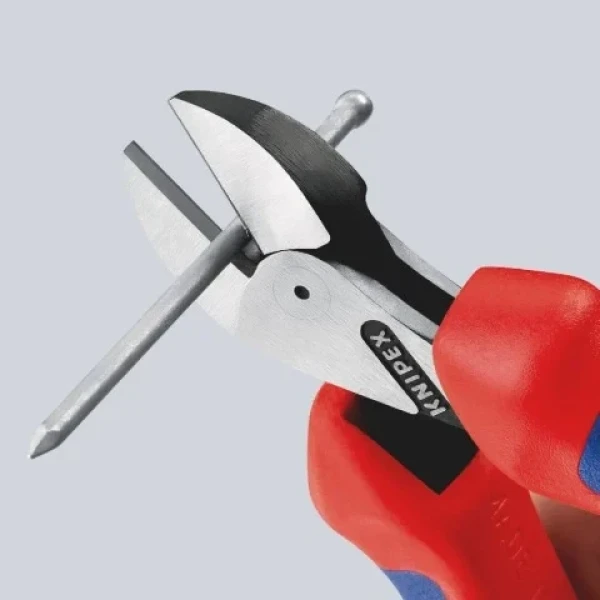

Cutting capacity - up to 3/16" for soft, up to 5/32" for medium, up to 7/64" for hard , up to 3/32" for piano wire and up to 15/32" for Cu and Al multi conductor cable
Universal usage in the assembly, maintenance and production
Part Number

73 02 160

UPC

843221020101

Country of Origin

Germany

Length

6 1/4"

Width

2 1/8"

Height

7/8"

Weight

0.39 lbs.

1000 Volt Insulated

No

Material Type

Chrome vanadium heavy-duty steel, forged, oil-hardened

Handle Type

Multi-component

Surface Finish

Polished

Other Surface Finish

Black atramentized

Joint Type

Box-joint with rivet

Cutting Capacity - Piano Wire

3/32"

Cutting Capacity - Hard Wire (Steel Wire)

7/64"

Cutting Capacity - Medium Hard Wire (Nail)

5/32"

Cutting Capacity - Soft Wire

3/16"

Cutting Capacity - Cu and Al conductor

15/32"

Cutting Edge Shape

Bevel

DIN

DIN ISO 5749

Reach

does not contain SVHC

RoHS

not applicable
